产品信息

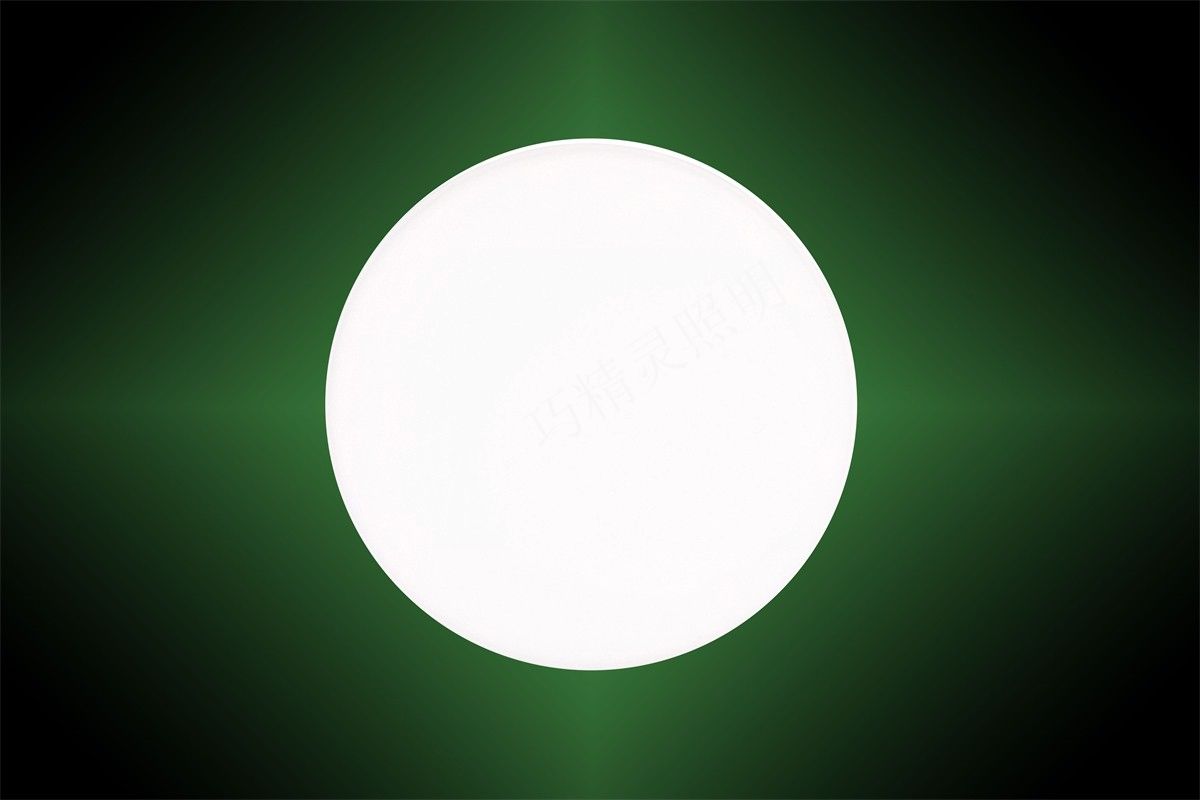

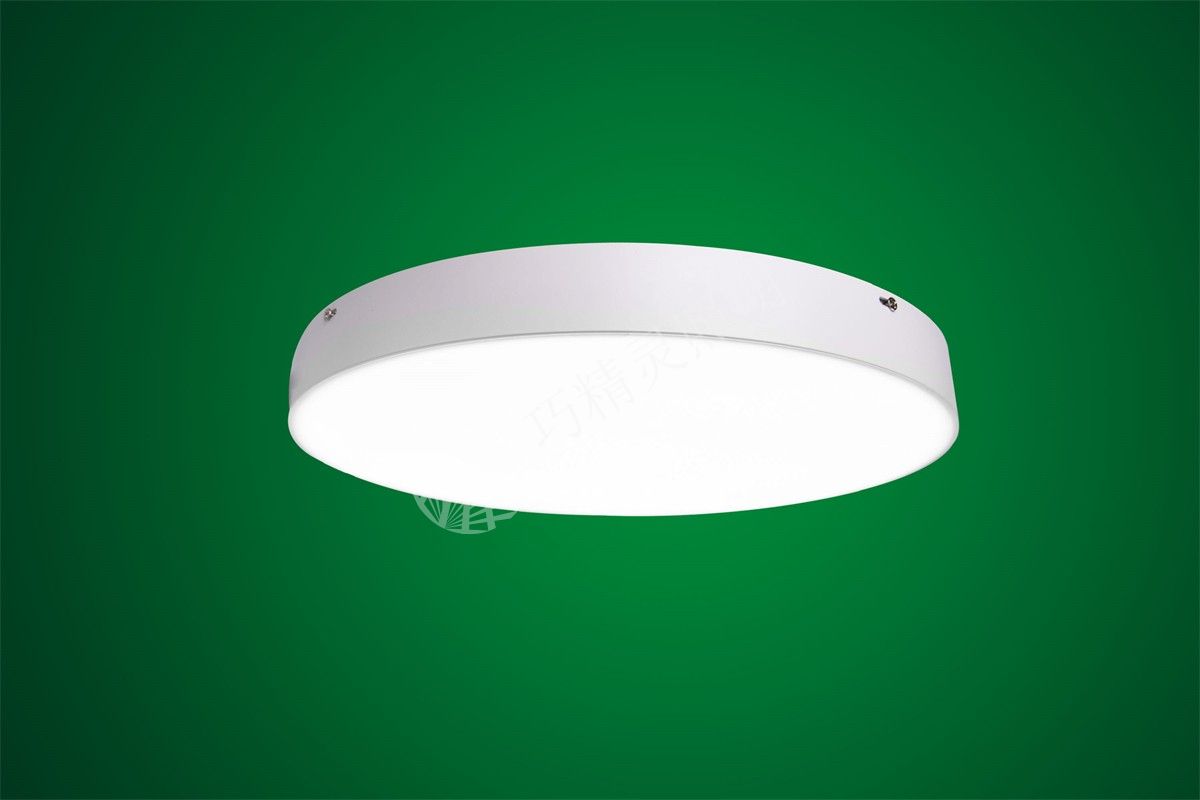

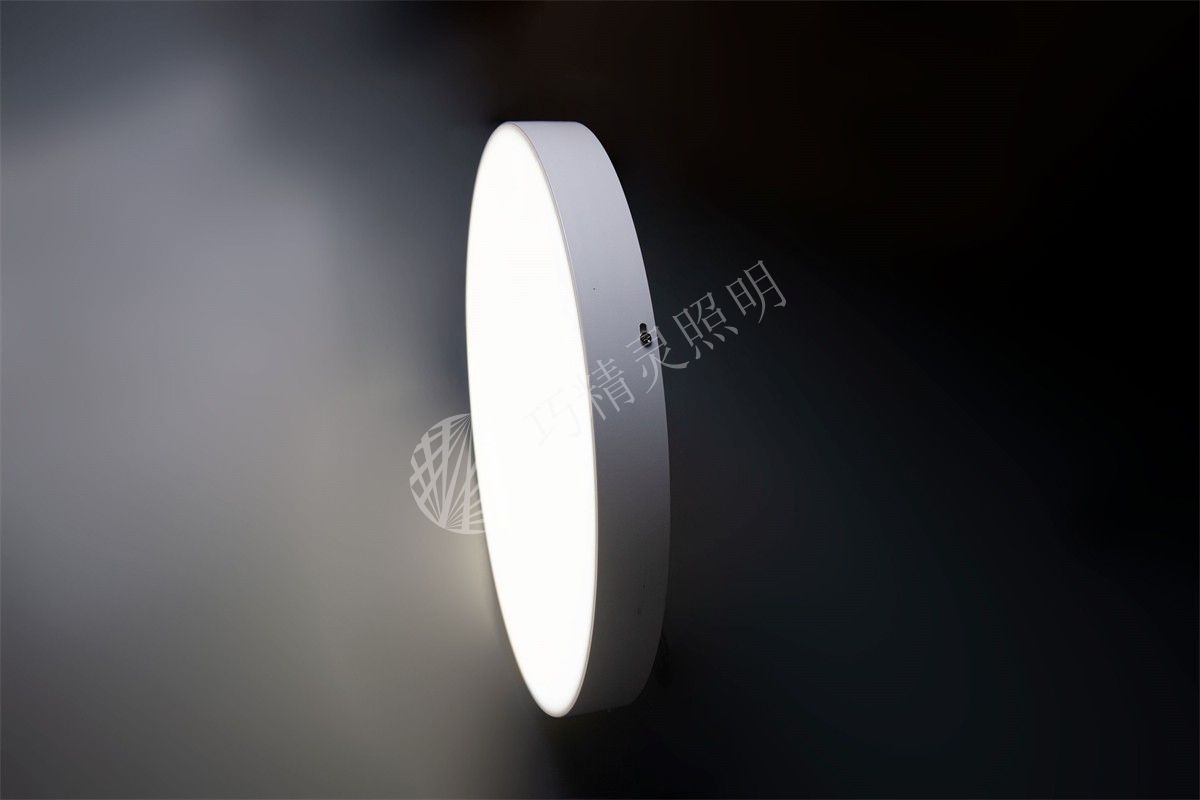

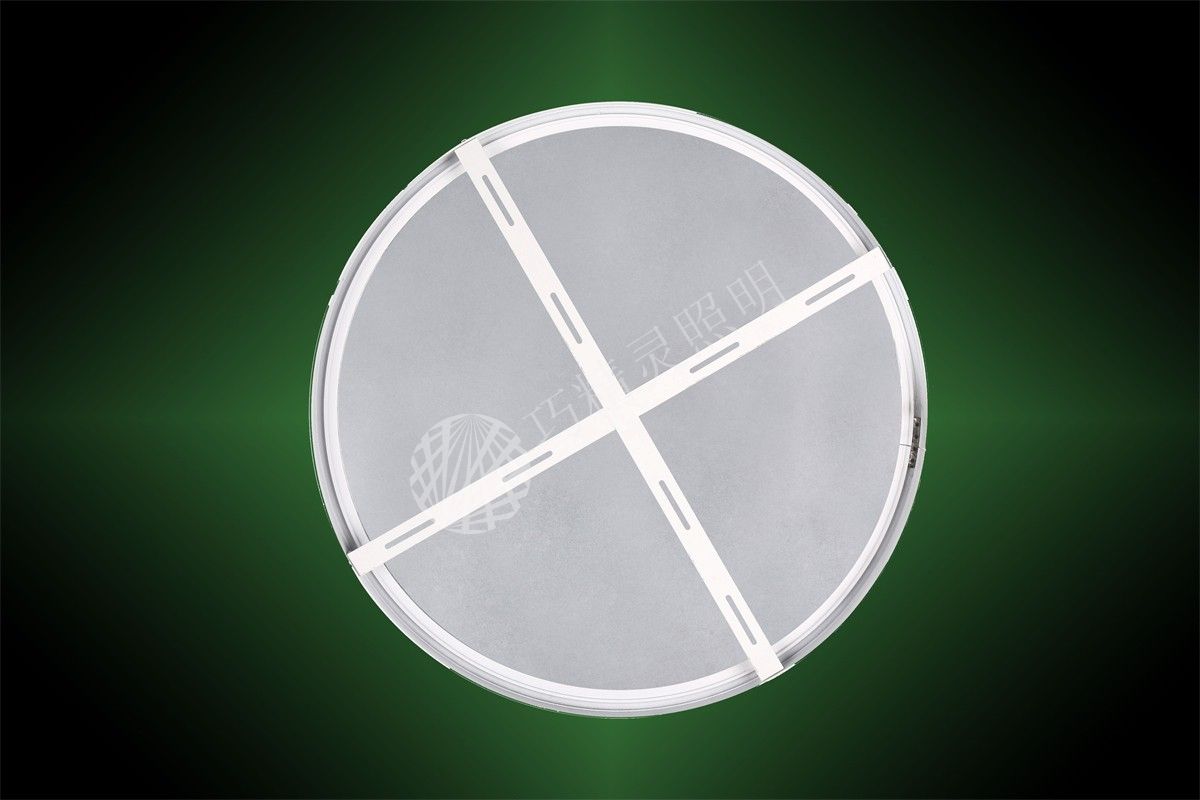

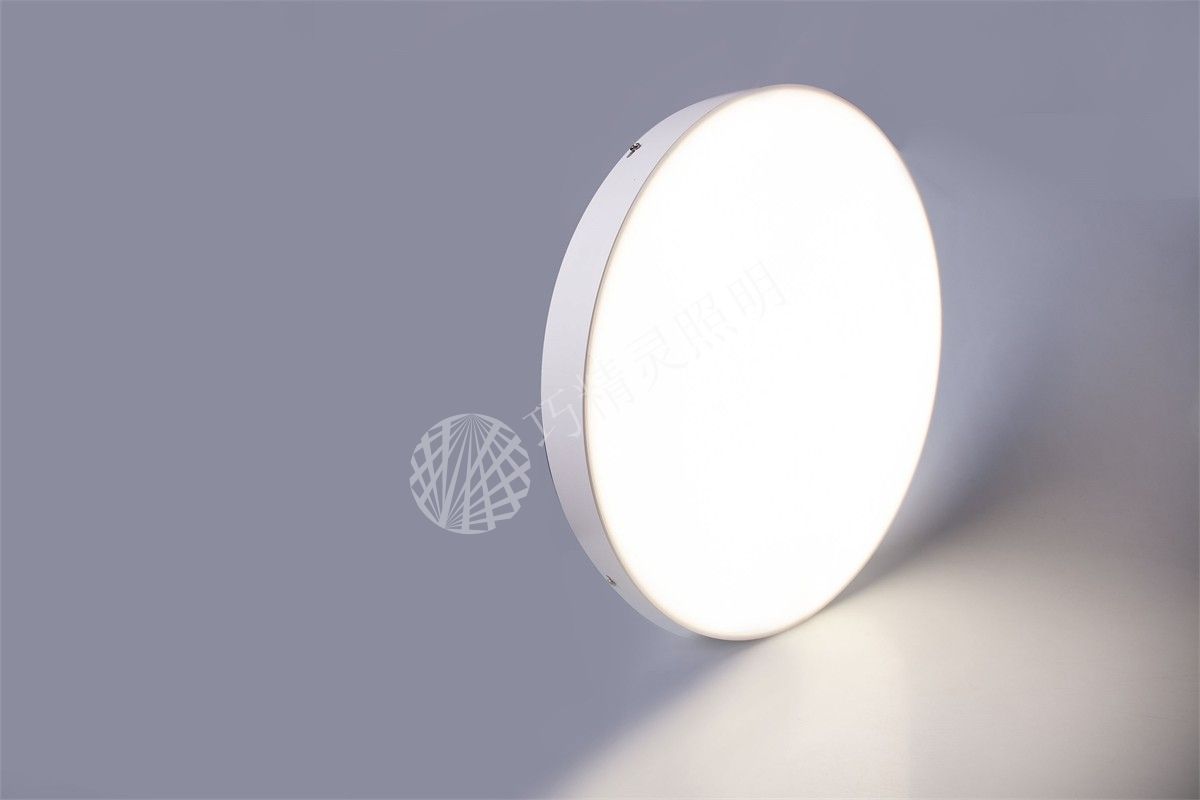

圆形无边框面板灯

产品规格

Input VoltageAC200-240V
Drive Efficiency≥87%
Power Factor PF≥0.7(24W) ≥ 0.9(36W)
THD<20%
Standby Power Consumption<0. 5 W
Whole Lamp Illumination Angle>110 °
Evenly Distributed Illumination>82%
Output Voltagesingle colors27-42v cct24v
UGR19
Insulation classclass Ⅱ
Working environment10-80%RH -20~+50°c
Lamp Housing Temperature rise<20°C
Withstand PressureI/P-O/P:3.75KVac <5mA.60S
Surge levelComply with IEC61000-4-5(L-N:1KV)

Technical Data


Product No.Power(W)

Color temperature

CRILEDs/MLuminous FluxLight EfficiencySize
ARW40-24F-30CW5-PM243000K801922500lm±10%110lm/w±10%φ400X45MM
ARW40-24F-40CW5-PM244000K801922400lm±10%110lm/w±10%φ400X45MM
ARW60-36F-30CW5-PM363000K802403700lm±10%110lm/w±10%φ600X45MM
ARW60-36F-40CW5-PM364000K802404100lm±10%110lm/w±10%φ600X45MM
ARW40-24F-3060CW5-PM243000K-6000K80192

2400lm±10%(3000K)

2100lm±10%(4000K)

2000lm±10%(6000K)

90lm/w±10%

90lm/w±10%

80lm/w±10%

φ400X45MM
ARW60-36F-3060CW5-PM363000K-6000K80352

3500lm±10%(3000K)

3200lm±10%(4000K)

3100lm±10%(6000K)

100lm/w±10%

100lm/w±10%

90lm/w±10%

φ600X45MM
